Roll Stock Film Implementation Guide for Packaging Lines

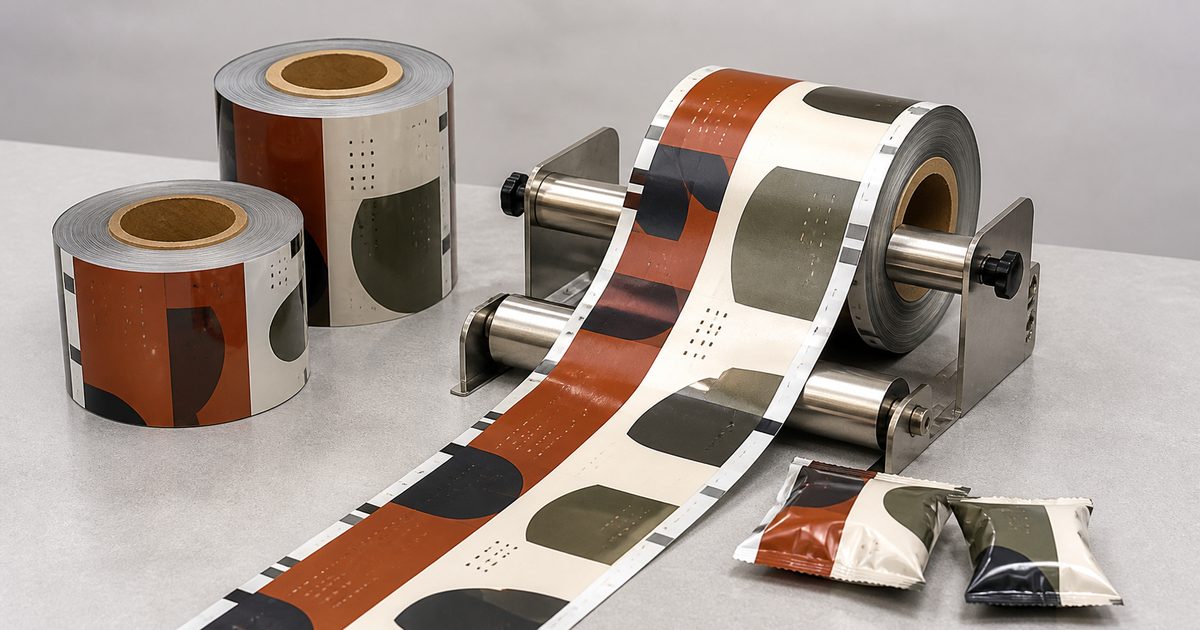

Roll stock film is the starting material for every form-fill-seal packaging line. Unlike pre-made pouches that arrive ready to fill, roll stock is a continuous web of pre-printed, laminated film wound onto a core. The machine unwinds it, forms it into a pouch shape, fills the product, and seals the package in one continuous operation. Getting the roll specifications right before production starts is essential. A mismatch in width, core size, wind direction, or seal layer can shut down a filling line on day one.

What is roll stock film

Roll stock film is pre-printed, laminated flexible packaging material supplied in continuous rolls rather than as individual pre-made pouches. It is designed to run on form-fill-seal (FFS) machines, which convert the flat film web into filled, sealed packages at production speed.

A typical roll stock structure consists of multiple layers bonded together through lamination:

• Outer print layer: Usually PET (polyester) or BOPP (biaxially oriented polypropylene), carrying the reverse-printed graphics. This layer provides stiffness, printability, and surface protection.
• Middle barrier layer: Aluminum foil, metallized PET, metallized BOPP, or EVOH, depending on the oxygen and moisture barrier requirements of the product.
• Inner sealant layer: PE (polyethylene), CPP (cast polypropylene), or specialty sealant films. This is the layer that bonds to itself under heat and pressure to form the pouch seals.

Roll stock is the most efficient packaging format for high-volume production. It eliminates the cost of pre-forming pouches and allows the machine to create exactly the pouch size needed at full line speed. However, it requires more precise specifications than pre-made pouches because the machine is forming the package in real time.

Critical roll specifications

Every roll stock order requires these core dimensions, and each must match the machine that will run the film.

Film width

Film width determines the pouch size. For VFFS machines, the film width equals the pouch circumference (front panel width plus back panel width plus two side gussets or seal allowances). For HFFS machines, the film width equals the pouch width plus seal margins. Width tolerance is typically plus or minus 1 mm. A film that is 2 mm too wide may not track properly; a film that is 2 mm too narrow will produce undersized pouches with compromised seals.

Core inner diameter

The core is the cardboard or plastic tube at the center of the roll. Standard core inner diameters are 3 inches (76 mm) and 6 inches (152 mm). The core must fit the machine unwind shaft. A 3-inch core on a 6-inch shaft will not mount; a 6-inch core on a 3-inch shaft will spin freely and cause tension loss. Confirm your machine core requirement before ordering.

Roll outer diameter

Maximum roll OD is limited by the machine roll cradle or unwind stand. Larger rolls mean fewer roll changes and less downtime, but the machine must have the physical space and the unwind motor must handle the weight. Typical maximum OD ranges from 300 mm to 600 mm depending on the machine.

Wind direction

Wind direction specifies whether the print faces inward (toward the core) or outward (away from the core) when the film is wound. The correct wind direction depends on how the machine unwinds and routes the film. Specifying the wrong direction means the print will face inside the finished pouch. Wind direction is usually designated as "print in" or "print out," sometimes with numbered codes (wind 1 through wind 8 in some standards). Confirm the machine requirement with your equipment supplier.

Registration marks and eye marks

Registration marks (also called eye marks or photo marks) are printed marks on the film that tell the machine sensor where to cut and seal. Without accurate registration marks, every pouch will be misaligned: artwork shifted, seals in the wrong position, and scrap rates climbing.

Key registration mark specifications include:

• Mark color: The mark must contrast enough with the background for the photoelectric sensor to detect it reliably. Dark marks on light backgrounds work best. Common colors are black, dark blue, or dark brown. Metallic or reflective marks can confuse optical sensors.
• Mark size: Typically 5 mm to 12 mm wide and 10 mm to 25 mm long, but dimensions depend on the sensor model. Marks that are too small may be missed at high speeds; marks that are too large may trigger early.
• Mark position: Usually placed in the seal area or trim zone so the mark does not appear on the visible face of the finished pouch. Position must be consistent repeat to repeat within plus or minus 0.5 mm.
• Repeat length: The distance between registration marks equals one pouch length. Repeat length tolerance is typically plus or minus 0.5 mm over the full roll. Cumulative drift across the roll will cause progressive misalignment.
• Sensor type compatibility: Most machines use contrast-detecting photoelectric sensors, but some use color mark sensors or ultrasonic sensors for transparent films. Confirm your sensor type so the mark design matches.

Heat seal layer compatibility

The sealant layer is the innermost layer of the film, and it must be compatible with your machine sealing system. Seal quality depends on three variables that must all align: temperature, dwell time, and pressure.

Seal initiation temperature (SIT)

SIT is the minimum temperature at which the sealant layer begins to form a bond. Common sealant layers and their approximate SIT ranges:

• LDPE / LLDPE: 120 to 150 degrees C. The most common sealant for general-purpose packaging.
• Metallocene PE: 90 to 110 degrees C. Lower SIT allows faster sealing speeds and better sealing through contamination (powder, oil, or moisture in the seal area).
• CPP (cast polypropylene): 140 to 160 degrees C. Used when higher heat resistance is needed, such as hot-fill or microwave applications.
• Surlyn (ionomer): 80 to 100 degrees C. Premium sealant with excellent hot tack and seal-through-contamination performance.

Your machine seal bars must be able to reach and hold the sealant SIT. If the machine maximum is 140 degrees C and the sealant SIT is 150 degrees C, seals will be incomplete.

Dwell time

Dwell time is how long the seal bars stay in contact with the film. Faster line speeds mean shorter dwell times. A sealant that seals well at 0.5 seconds dwell may fail at 0.2 seconds. When your line speed increases, you may need a lower-SIT sealant to compensate for reduced dwell time.

Seal temperature window

The usable window is the range between SIT and the temperature at which the film distorts, burns, or loses structural integrity. A wider window is more forgiving on the production floor. A narrow window requires tighter machine temperature control and more frequent calibration.

Film tension and feeding

Film handling on the machine depends on surface properties and mechanical behavior that are less visible than dimensions but just as critical.

Coefficient of friction (COF)

COF measures how easily film layers slide against each other and against machine surfaces. It is measured on both the outer (print) side and inner (sealant) side. Too-low COF causes the film to slip on rollers and lose tracking. Too-high COF causes the film to stick, drag, or wrinkle. Typical target ranges are 0.15 to 0.35 for the outer surface and 0.20 to 0.40 for the sealant surface, but your machine manufacturer may specify tighter ranges.

Anti-static treatment

Dry products like powders, spices, and granules generate static electricity during filling. Static causes product to cling to the film surface inside the pouch, contaminate the seal area, and create dust hazards. Anti-static additives or surface treatments on the sealant side can reduce static buildup. If your product is powder-based, discuss anti-static options with your film supplier.

Machine speed matching

The film must feed, form, fill, and seal within your machine cycle time. At higher speeds, the film experiences higher tension, shorter dwell times, and faster acceleration and deceleration through the film path. Films that perform well at 30 pouches per minute may wrinkle, stretch, or mis-register at 80 pouches per minute. When requesting film samples, specify your target production speed so the supplier can recommend appropriate film stiffness, COF, and sealant performance.

Sample and trial run coordination

Never commit to a full production order of roll stock film without running it on your machine first. Pilot rolls allow you to verify every specification in real conditions before spending on tens of thousands of meters of film.

Pilot roll process

• Request pilot rolls: Typically 1 to 3 rolls of the final film structure, printed with production artwork and cut to final width. Pilot rolls may carry a minimum order, but the cost is a fraction of fixing a full production run that does not run.
• Machine adjustment protocol: Run the pilot rolls on your production machine at the target speed. Record seal bar temperature, dwell time, tension settings, registration sensor sensitivity, and any manual adjustments needed. These records become the machine setup sheet for production.
• Seal testing: Pull sample pouches from the trial run and test seal strength (peel test), burst pressure, and visual seal quality. Check for wrinkles, channels, contamination, and incomplete seals.
• Registration accuracy: Inspect artwork alignment across at least 50 consecutive pouches. Look for progressive drift, sudden jumps, or inconsistent positioning.
• Scrap rate assessment: Record the number of rejected pouches and the reasons. A well-matched film on a properly adjusted machine should produce less than 2 percent scrap after setup.

What to share with your film supplier after the trial

Send the machine setup sheet (temperature, speed, tension), sample pouches showing any defects, seal test results, and scrap rate data. This information allows the supplier to fine-tune the film structure, COF, or registration mark placement for the production order.

When requesting roll stock film from NIAITE, include your machine make and model, target line speed, product type and fill method, desired pouch dimensions, barrier requirements, and any known seal temperature or tension constraints. Our project support team will confirm film structure, roll dimensions, wind direction, and registration mark specifications before sampling.
